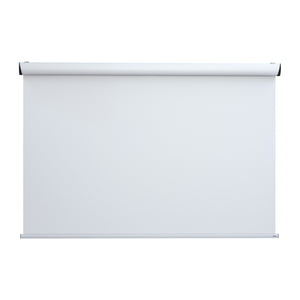

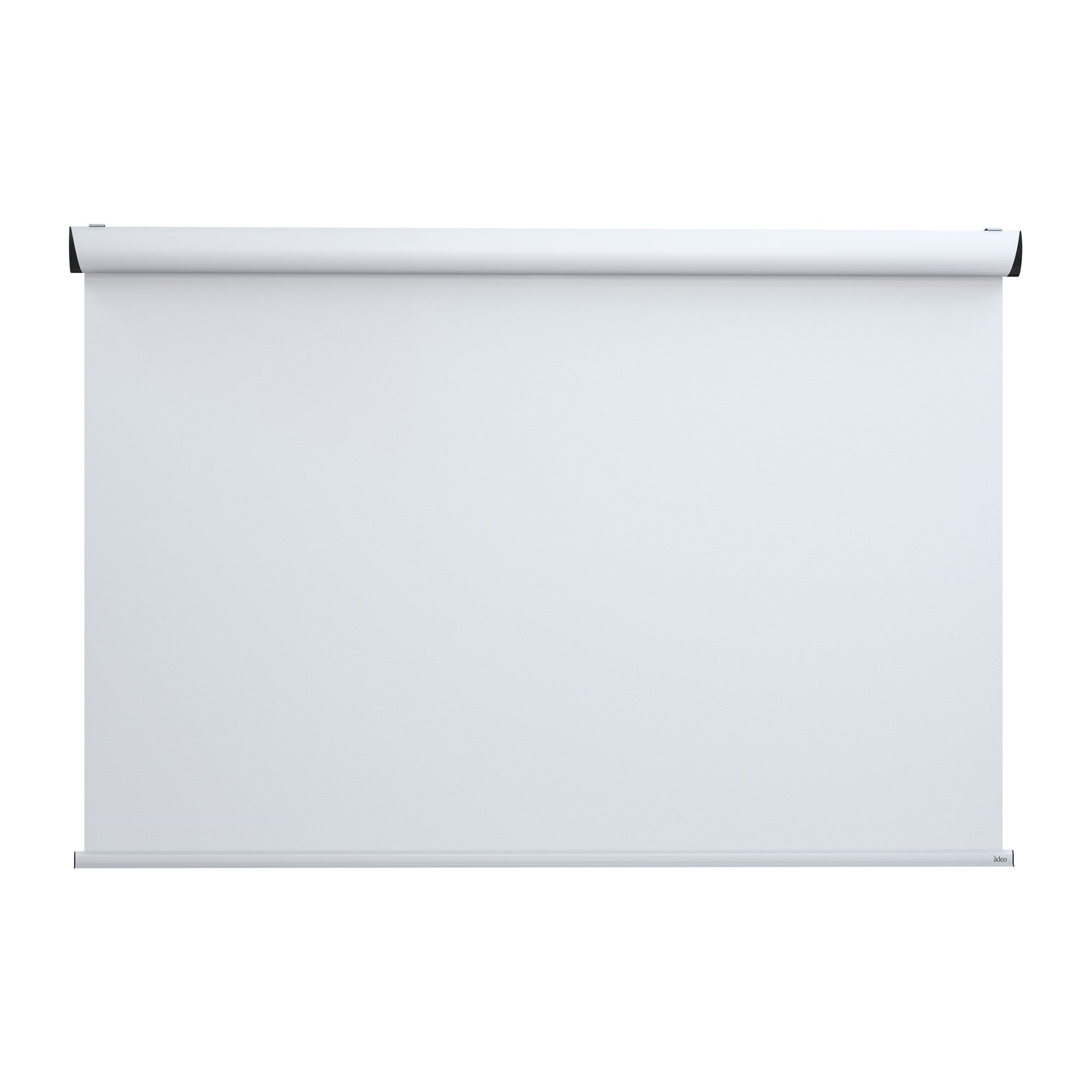

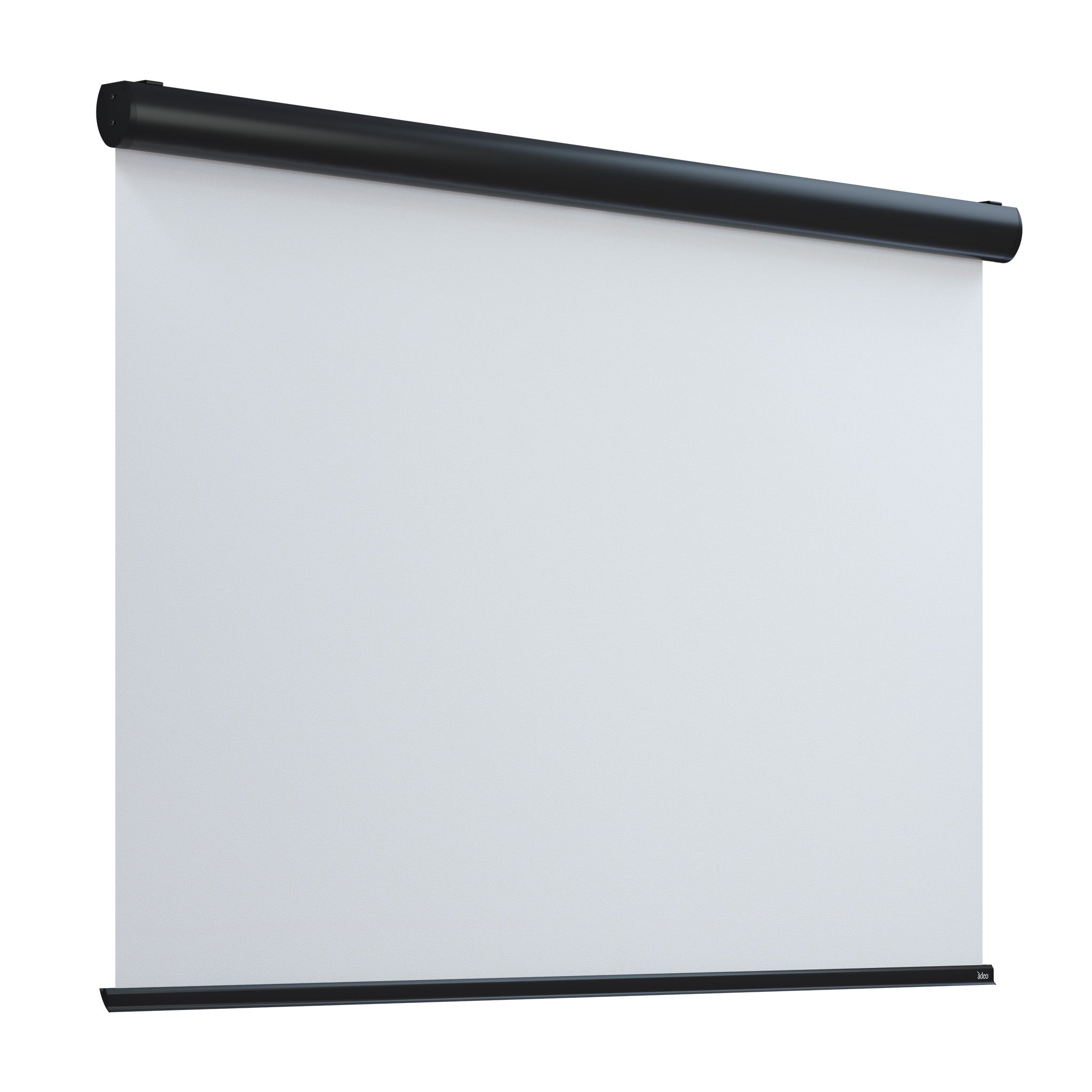

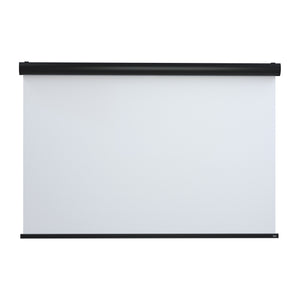

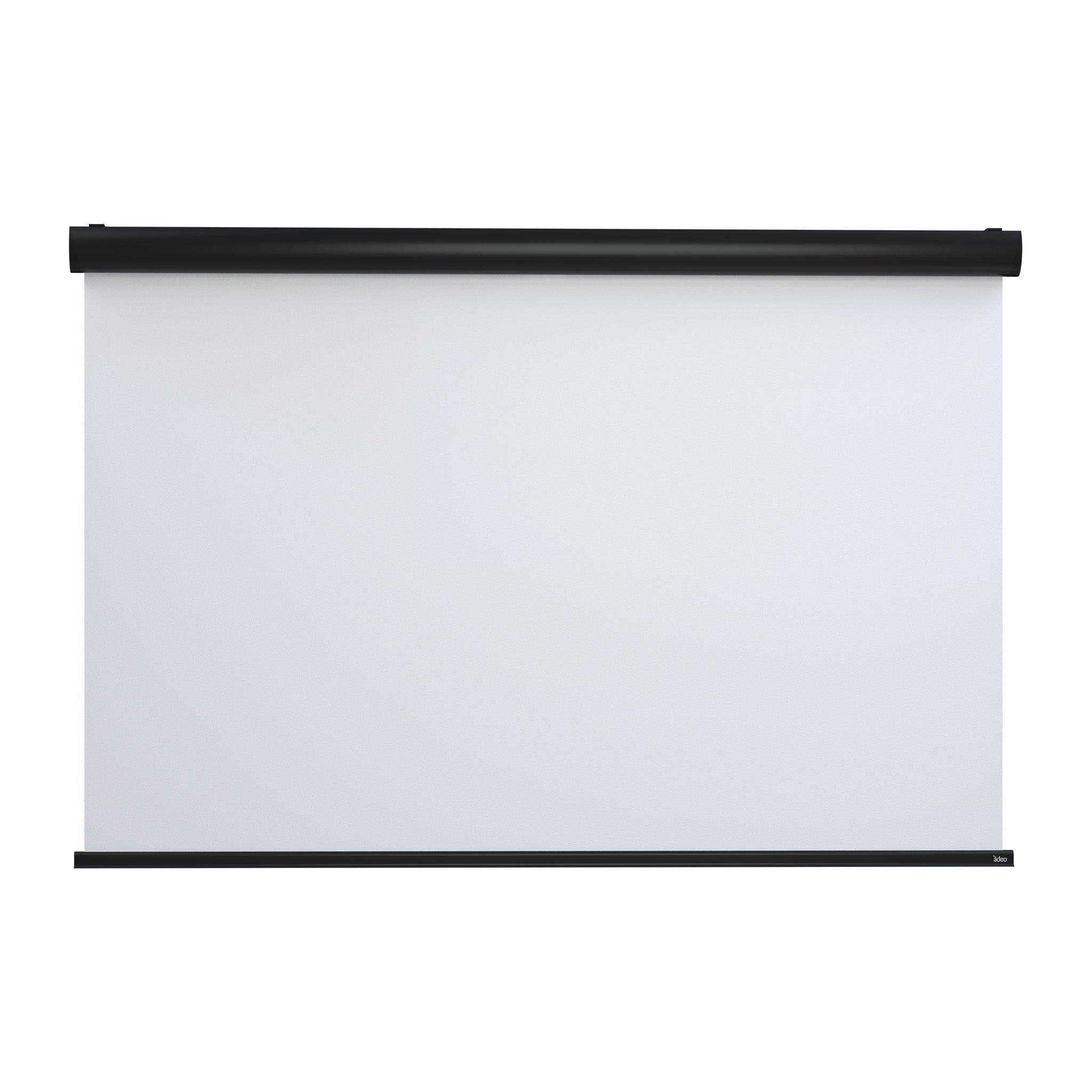

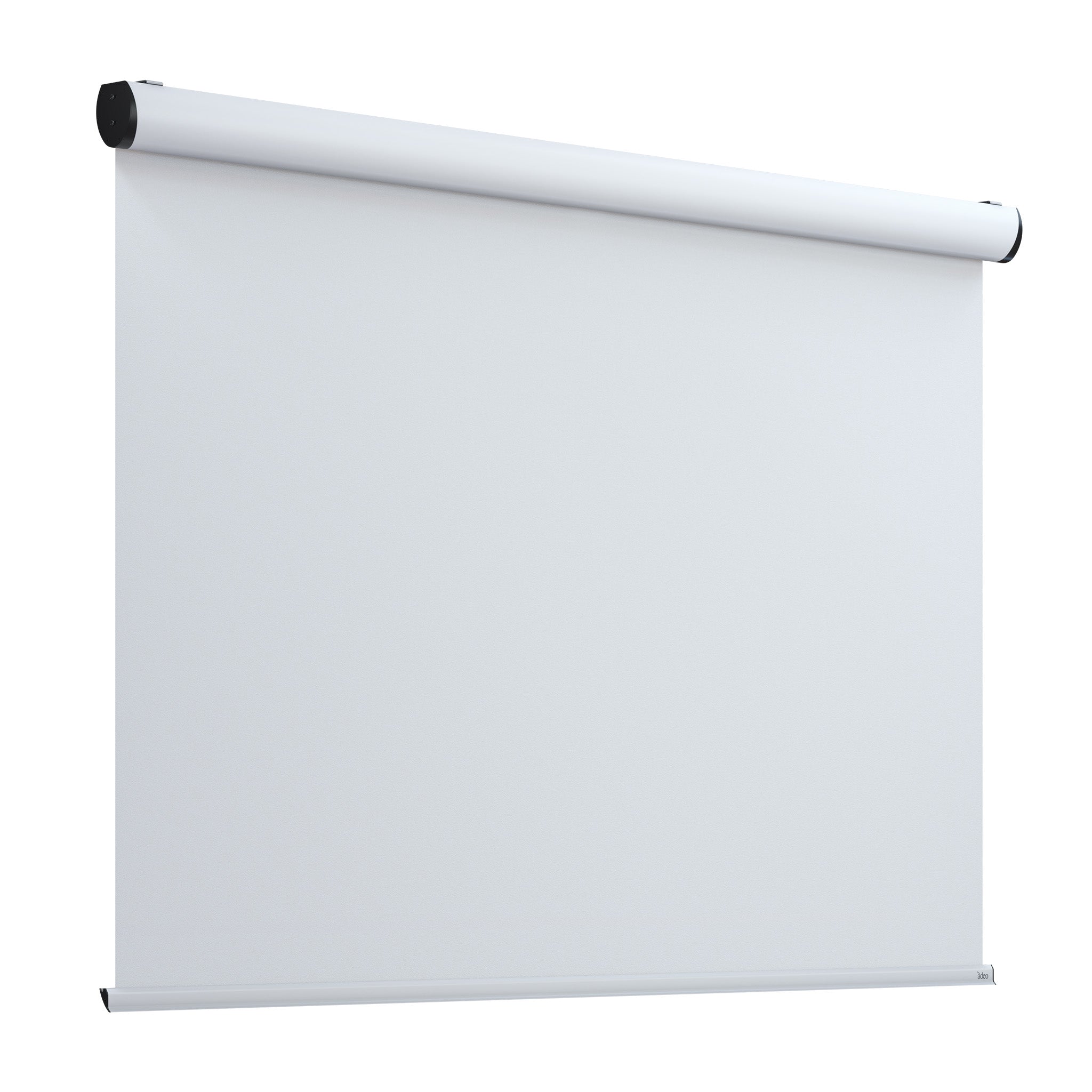

Rugby Pro | No Black Borders
The Rugby PRO rolling screen has been designed for the professional channel, where ease of installation, durable materials and simplicity of use are required.
In this product line, the heads and lower bar are made of laminated iron to make the screen extremely robust. The aluminium case has been designed with an innovative interlocking system that reduces the transmission of vibrations from the motor, limiting the noise when operating the screen.
The fixing system has been completely innovated and allows symmetrical installation with both front and back screen fall. In the Rugby range, rollers of different diameters are used based on the size of the projection viewing area.
Rolls of 90mm are mounted on sizes over 2500mm and up to 4500mm of viewing area width. In the non-tensioned version, the Rugby PRO is available with or without edges.
The case and lower bar are available in matt white or matt black. Backfall for the surface is the standard. Front and reverse-roll are also available as options. The motor is on the right side (standard). It can also be ordered on the left side (optional)
KEY FEATURES
- On-wall/on-ceiling motorized screen without black borders
- Powder-coated aluminium case standard in white matte or optional in black matte (free of charge).
- Powder-coated iron end caps in black matte.
- Projection surfaces in PVC without cadmium.
- Command side on the right (upon request on the left side). Electric motor 230V Hz50 12RPM.
- Comply with directives for: low voltage, electromagnetic compatibility, radio equipment, eco-design consumption, ROHS, waste regulations (WEEE) and product safety.
- SuperQuick® bracket attachment system for wall and ceiling mount included.
- Softend® lowbar system included. Wall switch included (only for screens with standard motors).
- Transmitter included (only for screens with Mechanical motor TTGO + RF receiver integrated into the casing).
