Quick answer: Sliding board solutions pair with interactive flat-panel screens by mounting writing panels on horizontal rails above, below, or to either side of the display. When the screen is in use, the boards slide clear; when written or displayed work is needed, they slide across to cover the screen for protection and to provide additional surface area. The combination gives classrooms and training rooms a single, uninterrupted front wall that works as both an analogue writing surface and a fully interactive digital display.
Why interactive screens and whiteboards work better together
Interactive flat-panel screens have become standard in modern classrooms, yet a screen alone leaves a familiar problem unsolved: teachers still need writable surface area. Flip-chart pads feel temporary. A fixed whiteboard to the side of the screen splits the front wall visually and reduces the usable writing space once a projector or screen bracket is in place.
A sliding board system resolves this directly. The writing panels travel on galvanised steel rails and sit flush with the screen face when closed, so the front wall reads as a single coherent surface. Slide the panels apart and the interactive screen is fully exposed; close them and you have continuous e3 enamel writing area from edge to edge.
This is not a workaround. It is how the system is designed. The horizontal sliding mechanism is engineered specifically to integrate with interactive flat panels up to 2 metres wide, making it a genuine specification-grade solution rather than an afterthought.
How the sliding mechanism works
The system uses galvanised steel upper and lower rails with two carriages per board. End stops prevent the panels from travelling beyond the rail ends. The result is a smooth, predictable sliding action that requires no power and very little maintenance.

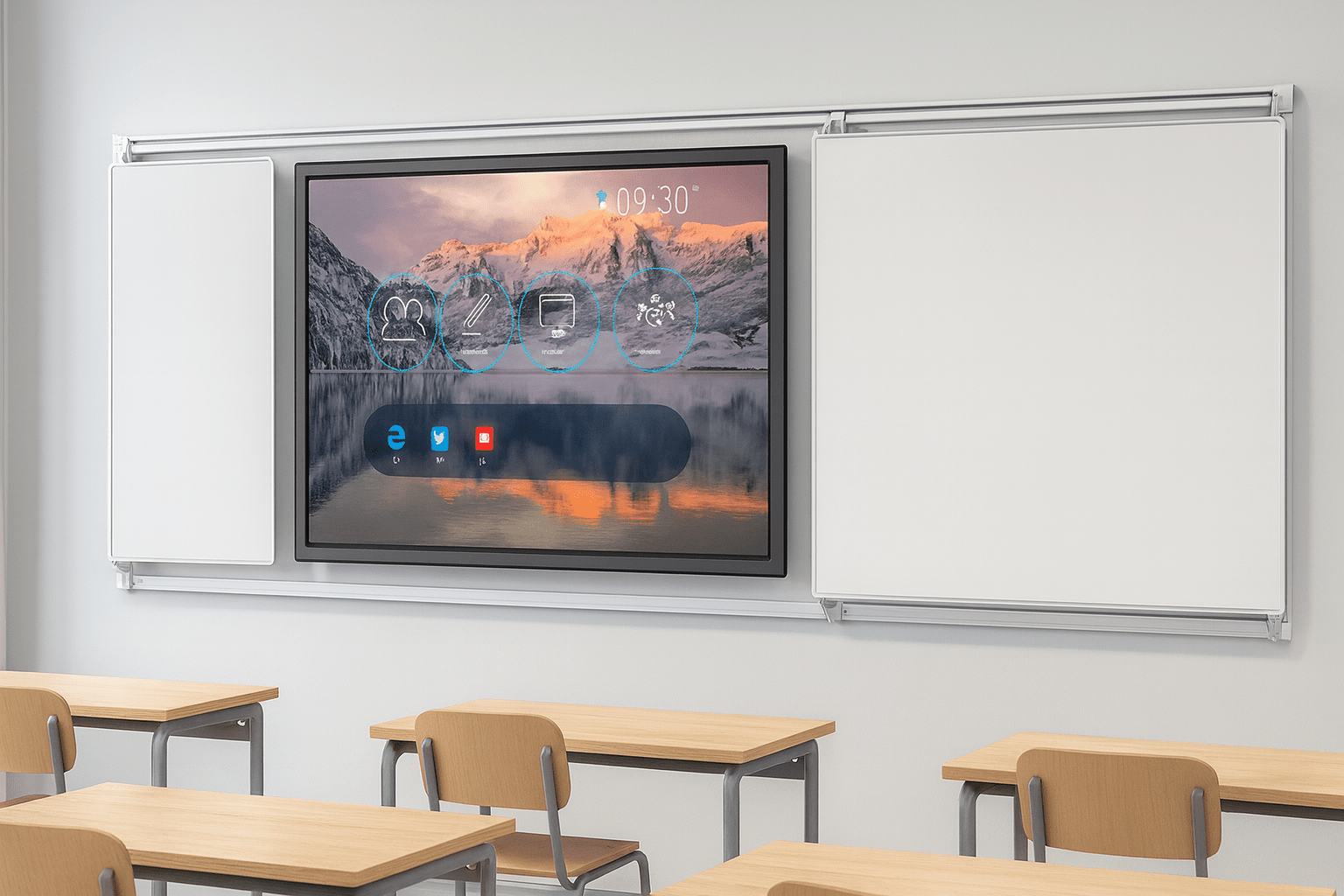

A typical configuration combines one or two fixed panels with one or two sliding panels. In the closed position, the sliding panels overlap the screen, protecting the display from marker residue, accidental contact, and general classroom wear. In the open position, the screen is fully accessible for touch interaction, video, and collaborative digital work.
Configurations can be extended: 2-metre rail sections can be placed side by side to cover front walls up to 8 metres wide. This makes the system suitable for large lecture theatres and training suites as well as standard classrooms.
The FlexiView Slider is the go-to product for this configuration. It is compatible with any brand of interactive flat panel up to 2 metres wide and is available in several board-count combinations to suit different room widths and teaching styles.
The writing surface: e3 enamel
The sliding panels use e3 enamelled steel surfaces in marker white. E3 enamel is a vitreous surface fired onto high-density chipboard, which gives it several practical advantages over painted-steel or melamine whiteboards:
- The surface is guaranteed for life under normal conditions of use
- It accepts both dry-erase markers and magnets, so boards can display printed resources as well as hand-written notes
- It resists scratches, bacteria, and cleaning chemicals better than painted or film surfaces
- The chipboard substrate is PEFC-certified and the finished board is 99% recyclable
- The whole product is manufactured in France to ISO 9001, ISO 14001, and ISO 45001 certification, with M2 fire rating
For schools and colleges specifying to sustainability criteria or public-sector procurement standards, these certifications matter. The surface warranty removes the need to budget for replacement boards on a five-to-ten-year cycle.
Classroom benefits: what teachers and students gain
The practical benefits of pairing a sliding board with an interactive screen go beyond the front-wall layout.
No competition for space. A common classroom frustration is switching between the screen and a whiteboard positioned to one side, forcing teachers to move and students to reorient. With a sliding board, the teacher works at the same point on the front wall whether writing by hand or driving the interactive display.
Seamless lesson transitions. Moving from a digital resource to written working, or from a board summary to a collaborative screen activity, takes a single slide of the panels. There is no fumbling with projector remotes or switching between physical positions.
Screen protection built in. Interactive flat panels are expensive assets. Closing the sliding boards over the screen when it is not needed adds a physical barrier against marker smears, accidental impact from thrown objects, and general contact from students moving around the room.
Magnetic display alongside digital content. Teachers can attach printed worksheets, reference diagrams, or student work to the enamel surface with magnets while the screen behind displays a related digital resource. The two surfaces reinforce each other rather than competing.
Specifying a sliding board for your interactive screen
There are a few key measurements and decisions to confirm before ordering.
- Screen width. Confirm the width of your interactive flat panel. The sliding board system accommodates screens up to 2 metres wide in a standard single-unit configuration.
- Total front-wall width. Measure the full width you want to cover with writing surface. Boards can be configured with fixed and sliding panels in different combinations; the rail sections can be joined to span wider walls.
- Number of panels. More sliding panels give greater writing area in the open position but increase the stack depth at the ends of the rail when the screen is fully exposed.
- Wall fixing. The rails fix to the wall via standard fixings. Confirm wall construction (stud, concrete, blockwork) so the correct fixings are supplied. A shallow-profile installation keeps the board face close to the wall.
- Surface finish. The standard finish is marker white e3 enamel. The sliding system can also be mounted on CLASSIC, HORIZON, SB, and i3WHITEBOARD single wall boards on request.
Browse the full range of sliding and gliding whiteboards in the column boards and sliding whiteboards collection, or view interactive screens if you are specifying the display at the same time.
Frequently asked questions
What size interactive screen is compatible with the sliding board system?
The standard sliding board configuration is compatible with interactive flat panels up to 2 metres wide. This covers the most common classroom screen sizes, typically 75-inch, 86-inch, and 98-inch displays. If your screen is wider than 2 metres, contact us to discuss a custom rail configuration.
Do the sliding boards protect the interactive screen when it is not in use?
Yes. In the closed position, the sliding panels sit in front of the screen face, providing a physical barrier against marker contact, accidental impact, and dust. This is one of the practical reasons schools specify sliding boards alongside interactive displays: the screen is a high-value asset, and the boards add a layer of protection at no additional cost to the teaching function.
Can I write on the board and use the interactive screen in the same lesson?
Yes, and this is the main teaching benefit of the combination. The panels slide smoothly on the rail, so moving from written work to interactive screen activity takes a few seconds. Teachers can also park one panel to the side so part of the enamel surface and part of the screen are visible simultaneously, depending on the configuration and rail width.
Are sliding boards suitable for primary schools, or are they mainly for secondary and higher education?
Sliding board systems are used across primary, secondary, further education, and corporate training environments. The rail mechanism is straightforward and robust enough for primary-school use; end stops prevent the boards from being pulled off the rail. The enamel surface and frame construction are the same regardless of the setting.
Can the system be extended to cover a wider front wall?
Yes. Two-metre rail sections can be placed side by side to create a continuous front-wall installation up to 8 metres wide. This makes the system appropriate for lecture theatres, large training rooms, and auditoriums where a single screen and writing surface does not cover the full presentation wall.
What maintenance does the sliding board mechanism need?
Very little. The galvanised steel rails and carriages are designed for continuous use and do not require lubrication under normal conditions. The e3 enamel writing surface is cleaned with a standard dry-erase board cleaner. The board warranty covers the frame for 2 years and the enamel surface for life under normal conditions of use.
If you would like advice on the right configuration for your classroom or training room, contact the Presentation Spaces team.
